Damaged Canopy Strut & Hinges on a Toyota Landcruiser 2012
A Case Study from GN Mechanical & Automotive
At GN Mechanical & Automotive in Bilingurr, our team recently completed a challenging repair on a Toyota Landcruiser 2012 (138130kms) that arrived with a damaged right-hand (RH) canopy strut and hinges.
The customer reported a significant rattling noise and difficulty in securing the canopy door normally used for equipment storage and access. This case study outlines the logical steps taken to diagnose and rectify the issue while safeguarding vehicle integrity and safety.
As a Repco Authorised Service centre with highly qualified technicians and modern diagnostic equipment, we regularly service and repair a wide range of vehicles, including light passenger cars and 4WDs. Our workshop’s commitment to quality car servicing and automotive repairs is backed by local expertise and training under the Repco Auto Tech program.
.jpg?auto=format&fit=max&w=1200)
Initial Inspection and Diagnosis

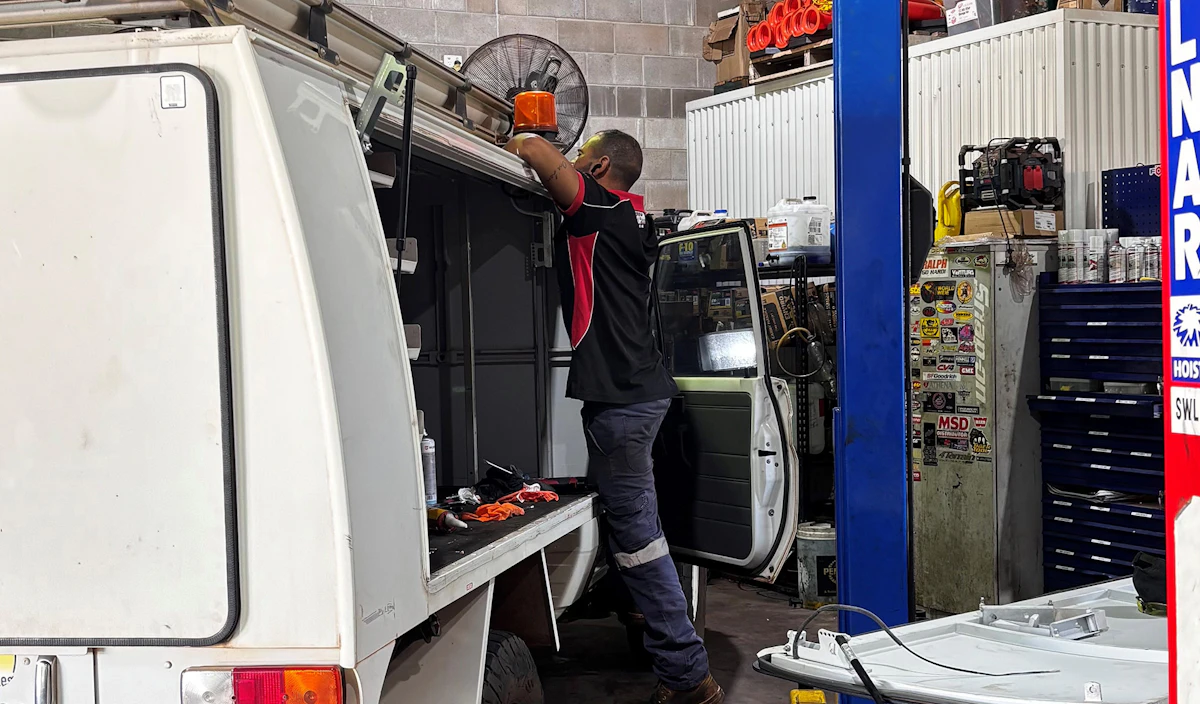

When the Toyota Landcruiser 2012 arrived at the workshop, the team began with a structured assessment to confirm the customer’s complaint of a rattling canopy door and to identify underlying causes. The first step involved visually inspecting the entire RH canopy assembly. Our technicians observed that the front hinge had snapped completely. The rear hinge was intact but compromised, with only one bolt still securing it while the others had failed.
Understanding that a door with compromised hinges and struts poses safety issues — especially when driving on uneven roads in and around Bilingurr — the team took immediate precautionary action by stabilising the canopy. A ratchet strap was used to secure the canopy temporarily, preventing further movement or additional damage while the assessment continued.
The canopy strut itself was found to be damaged and no longer providing the necessary support for safe opening and closing. This preliminary diagnosis allowed the team to confirm that a full replacement of the canopy door and associated hardware was the most appropriate course of action to restore proper function and reliability, rather than solely replacing individual components.
Developing a Repair Plan
Following diagnosis, our technicians prepared a plan that prioritised structural integrity and long-term reliability. Given the snapped hinge and damaged strut, the logical approach was to remove the entire RH canopy door assembly, including all damaged components, and replace it with quality parts that fit the Toyota Landcruiser 2012 precisely.
Before starting work, the team documented the original configuration of mounting points and connectivity to ensure that the new assembly would align correctly. This planning is typical of the methodical strategies employed in professional automotive repair — ensuring that the end result maintains vehicle safety and performance without unnecessary risk.
Rectification Work and Replacement
With a clear plan in place, our technicians systematically removed the damaged canopy door and associated hardware. This included the broken front hinge, compromised rear hinge hardware, worn strut, and any ancillary parts that showed signs of wear or stress during inspection.
Once the area was prepared and cleared, the replacement canopy door and its hinges were installed in the correct orientation. All mounting points were secured to manufacturer specifications, and the new strut was fitted to provide dependable support for opening and closing the canopy.
It is important to note that precise mechanical tasks, such as torque-setting bolts or aligning the door for optimal operation, were handled by qualified professionals to maintain safety and performance standards. These detailed procedures help ensure that the canopy operates smoothly and reliably for everyday use.
.jpg?auto=format&fit=max&w=1200)
Testing and Confirmation
With the new components in place, the team conducted a series of functional checks, confirming that the canopy door opened and closed correctly without noise or instability. Central locking and access mechanisms were tested where applicable, and the entire assembly was observed under everyday movement conditions to verify correct function.
Before handing the vehicle back to the customer, a final quality review was carried out. This comprehensive assessment allowed our team to confirm that the repair met our high standards for reliability, safety and customer satisfaction.
The Outcome
This repair of a damaged RH canopy strut and hinge on a Toyota Landcruiser 2012 demonstrates the structured and professional approach that clients can expect from GN Mechanical & Automotive in Bilingurr. By carefully diagnosing the problem, planning an effective repair, replacing the necessary components, and confirming final performance, we ensured that the vehicle left our workshop in a condition that promotes confidence on local roads.
For reliable automotive servicing and repairs in the Bilingurr area, including complex mechanical work like this case study, our team at GN Mechanical & Automotive is ready to assist with high-quality workmanship and personalised service.
